LCM Low Profile, LCMU Ultra Low Profile

SN# 4579717-08 & After

Need Help Finding Your Serial Number?

Order Instructions

Maintenance and Troubleshooting

Due to the recent increase in raw materials and fuel costs,
all pricing will be confirmed at time of shipment.


QTY	DIAG #	DESCRIPTION	PART#	PRICE
	1	COMPLETE HANDLE ASSY. (ITEMS 1 – 10)	PL40276M	127.15
	2	SPLIT PIN	20105	5.00
	3	CONTROL LEVER	PL40274BDM	35.50
	4	CONTROL LEVER SLEEVE	54140	10.00
	5	CONTROL LEVER SPRING	218182	5.00
	6	CHROME BALL	20065	11.00
	7	CONTROL ROD ASSY.	215775	86.03
	8	SPLIT PIN (PART # PL20274RB)	20461	5.00
	9	AXLE (PL20274P)	47930	11.00
	10	ROLLER WITH BUSHING	202755	22.00
	11	HANDLE BRACKET PIVOT PIN (7500086)	222750	28.00
	12	ADJUSTING NUT	21094	5.00
	13	LOCKING PIN	220312	5.00
	14	LOWERING ARM	215128	15.25
	16	LOCKING RING	20043	5.00
	17	SLEEVE	215803	11.00
	18	WASHER	215282	5.00
	19	SPRING	215156	19.86
	20	LIFT PISTON	215030	79.79
	21	REAR PISTON	215286	36.75
	22	SEALING RING	21060	N/A
	23	LOCKING RING	20642	7.00
	24	SCRAPER RING	20066	11.00
	25	SEALING	215866	13.00
	26	SEALING	215867	13.00
	27	LOCKING PIN	20014	5.00
	28	BUSHING	215913	5.00
	29	SCREW	221586	21.50
	30	O-RING	24213	5.00
	31	WASHER	235545	5.00
	32	SPRING	39106	5.00
	33	VALVE CONE	223935	14.75
	34	SCREW (OVERLOAD)	221232	9.87
	35	O-RING (OVERLOAD)	22032	5.00
	36	SPRING (OVERLOAD)	221227	5.00
	37	GUIDE PIN (OVERLOAD)	221231	7.00
	38	BALL (OVERLOAD)	22055	5.00
	39	BALL	20065	11.00
	40	WASHER	215288	5.00
	41	O-RING	22032	N/A
	42	VALVE BODY (SEE #47 LOWERING VALVE)
	43	SPRING	47071	5.00
	44	GUIDE	49513	15.00
	45	U-RING	22318	10.00
	46	RELEASE PIN	47051	33.33
	47	LOWERING VALVE (COMPLETE)	215776	N/A
	48	BALL BEARING	213056	25.17
	49	LOCKING PIN	220312	5.00
	50	LOCKING PIN	PL20269	5.00
	51	THRUST PLATE	245552	179.10
	52	LOCKING RING	21737	10.00
	53	GREASE NIPPLE SAME AS PL10236PRESS	27662	5.00
	54	AXLE RETAINING RING	20019	5.00
	55	SPACER (REQUIRED W/200965 ONLY)	161637	5.00
	56	AXLE	220310	27.00
	57	BALL BEARING (INCLUDED IN ASSEMBLY)	22226	N/A
	58	NYLON STEER WHEEL W/ BEARINGS	251189	46.00
		POLY-STEEL STEER WHEEL W/ BEARINGS	200965BT	162.14
		STEEL STEER WHEEL W/ BEARINGS	160433	148.53
	60	COMPLETE PUMP ASSEMBLY (INCLUDES WHEELS AND THRUSTPLATE)	PM30277BN	447.97
		REBUILD KIT	243772	216.00

Order Instructions

Maintenance and Troubleshooting

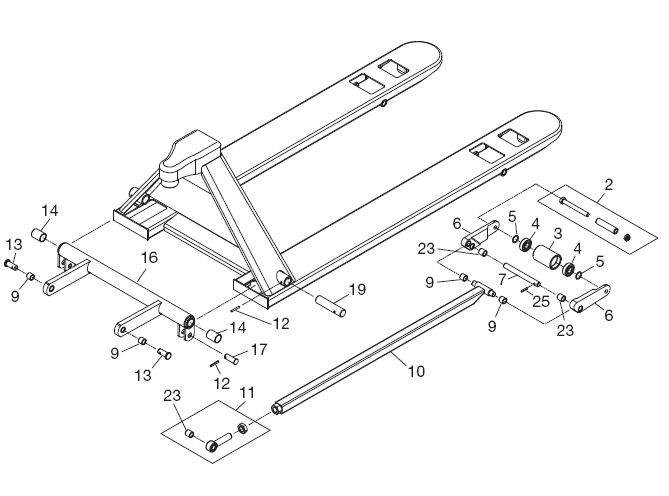

QTY	DIAG #	DESCRIPTION	PART#	PRICE
	1	2″ LOW. HGT. CHASSIS (SPECIFY LENGTH & WIDTH) (LCM50)	PM30200	CALL
		1-3/4′ LOW.HGT. CHASSIS (SPECIFY LENGTH & WIDTH) (LCU50)	PM30200U	CALL
	2	AXLE (INCLUDES BOLT, SLEEVE & NUT)	PM10215	30.67
	3	STEEL LOAD ROLLER W/BEARINGS *(LCM50)*	PM10210SA	34.40
		POLY/STEEL LOAD ROLLERS W/BEARINGS (LCM50)	PM10210PSA	133.94
		STEEL LOAD ROLLERS W/BEARINGS *(LCU50)*	PM10210UA	69.65
	4	BEARING FOR STEEL & POLY/STEER ROLLER *(LCM50)*	PM10214S	10.00
		BEARING FOR STEEL ROLLER *(LCU50)*	PM10214P	13.00
	5	WASHER	PL10216	5.00
	6	LEVER ARM ASSEMBLY (INCLUDES BUSHINGS) (LCM50)	PM20212	64.24
		LEVER ARM ASSEMBLY (INCLUDES BUSHINGS) *(LCU50)*	PM30212U	78.52
	7	FORK PIN	PM10219	38.73
	9	BUSHING	PL20206	5.00
	10	PUSH BAR – 36″ LONG FORK *(LCM50)*	PM20224-36	89.51
		PUSH BAR – 42″ LONG FORK *(LCM50)*	PM20224-42	77.04
		PUSH BAR – 48″ LONG FORK *(LCM50)*	PM20224-48	108.45
		PUSH BAR – 48″ LONG FORK *(LCU50) (1125142/003)*	PM20224-48U	204.96
	11	EYE BOLT (INCLUDES NUT & BUSHING)	PL20226	13.00
	12	SPLIT PIN	PL20269	5.00
	13	THRUST PLATE SHOULDER PIN	PL30207	15.80
	14	BUSHING	PL20203A	5.00
	16	20-1/2″ TORSION BAR *(LCM50 & LCU50)*	PM30201	140.59
		27″ TORSION BAR *(LCM50 & LCU50)*	PM30202	152.85
	17	EYE BOLT PIN	PL20227	11.00
	19	BULKHEAD PIN	PL20204	36.96
	23	BUSHING	PL20226A	5.00
	25	SPLIT PIN	PM20269	5.00
